FRAMECAD System - Model F325iT - produces Wall Frames, Trusses and Joists for Residential and Light Commercial Buildings
Stock#: 4945
Category Roll Formers
Request A Quote

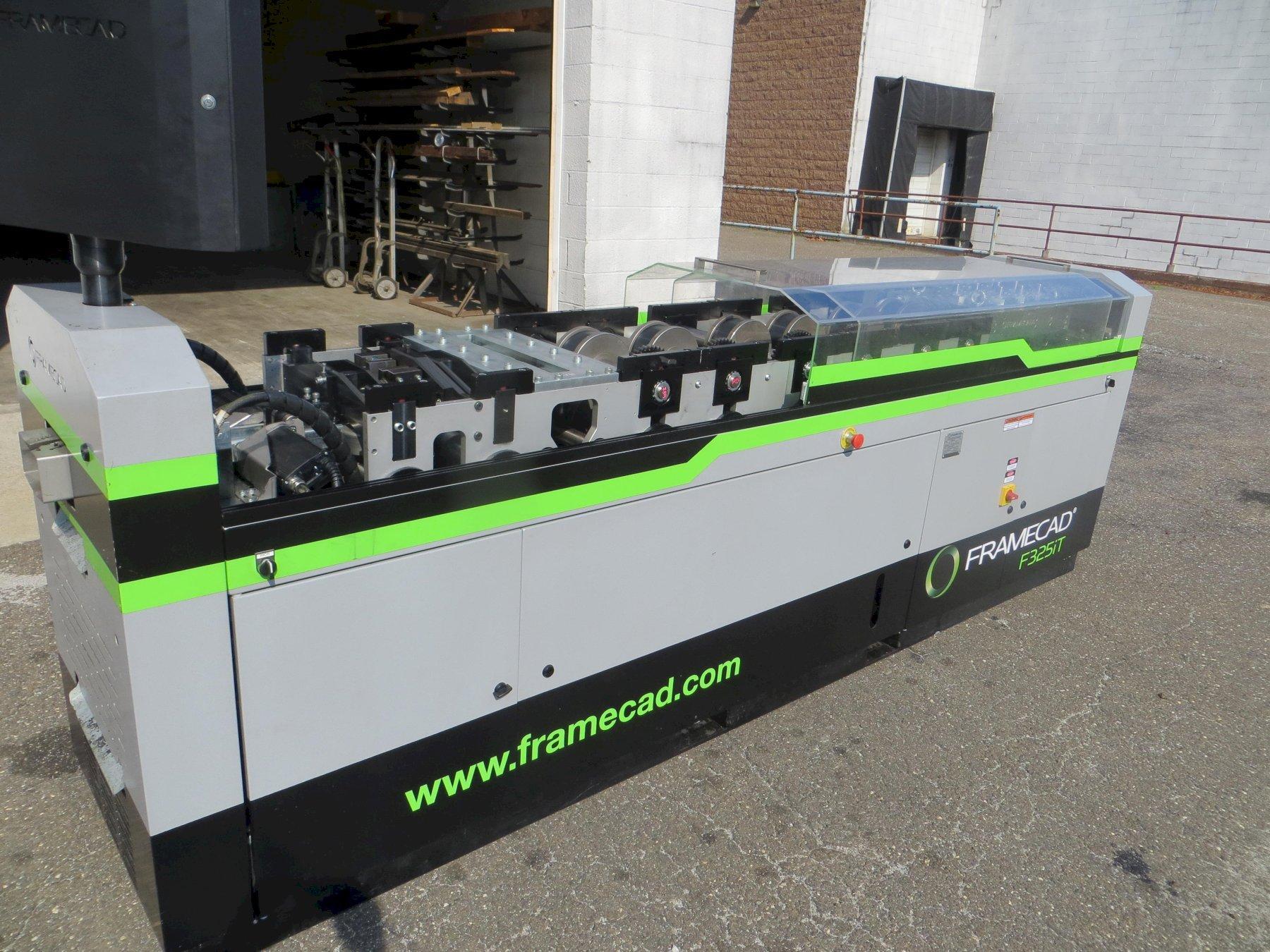

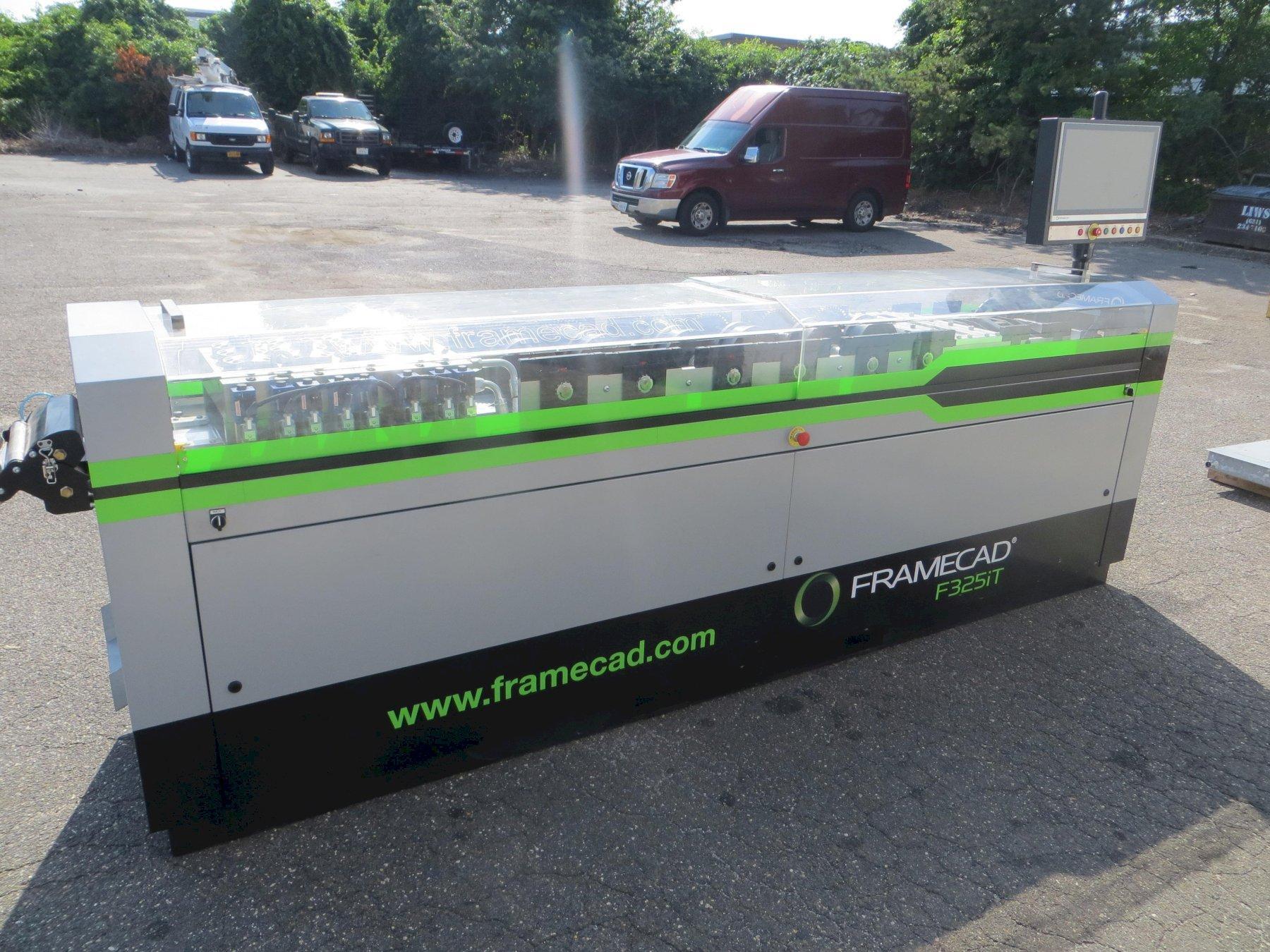

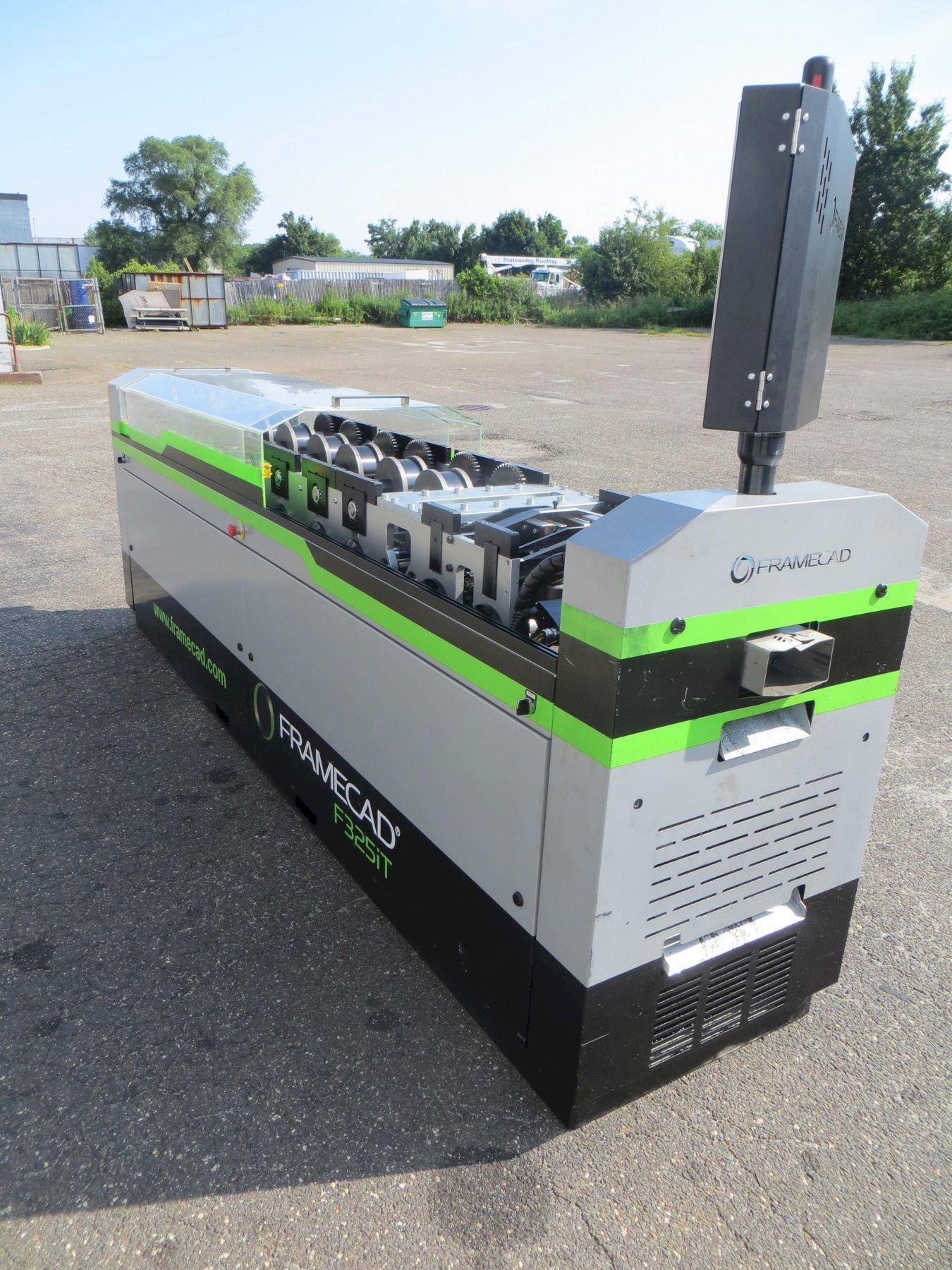

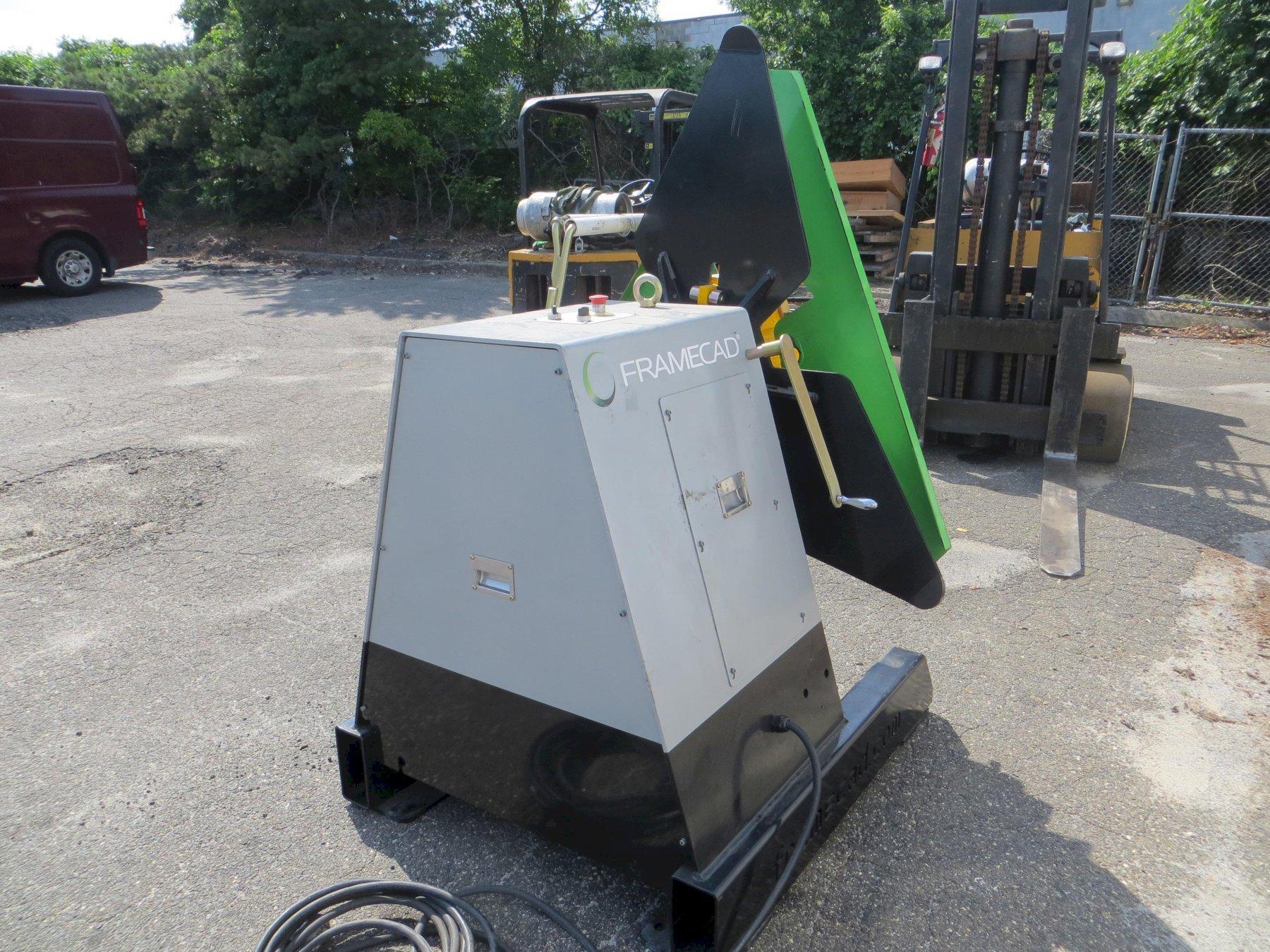

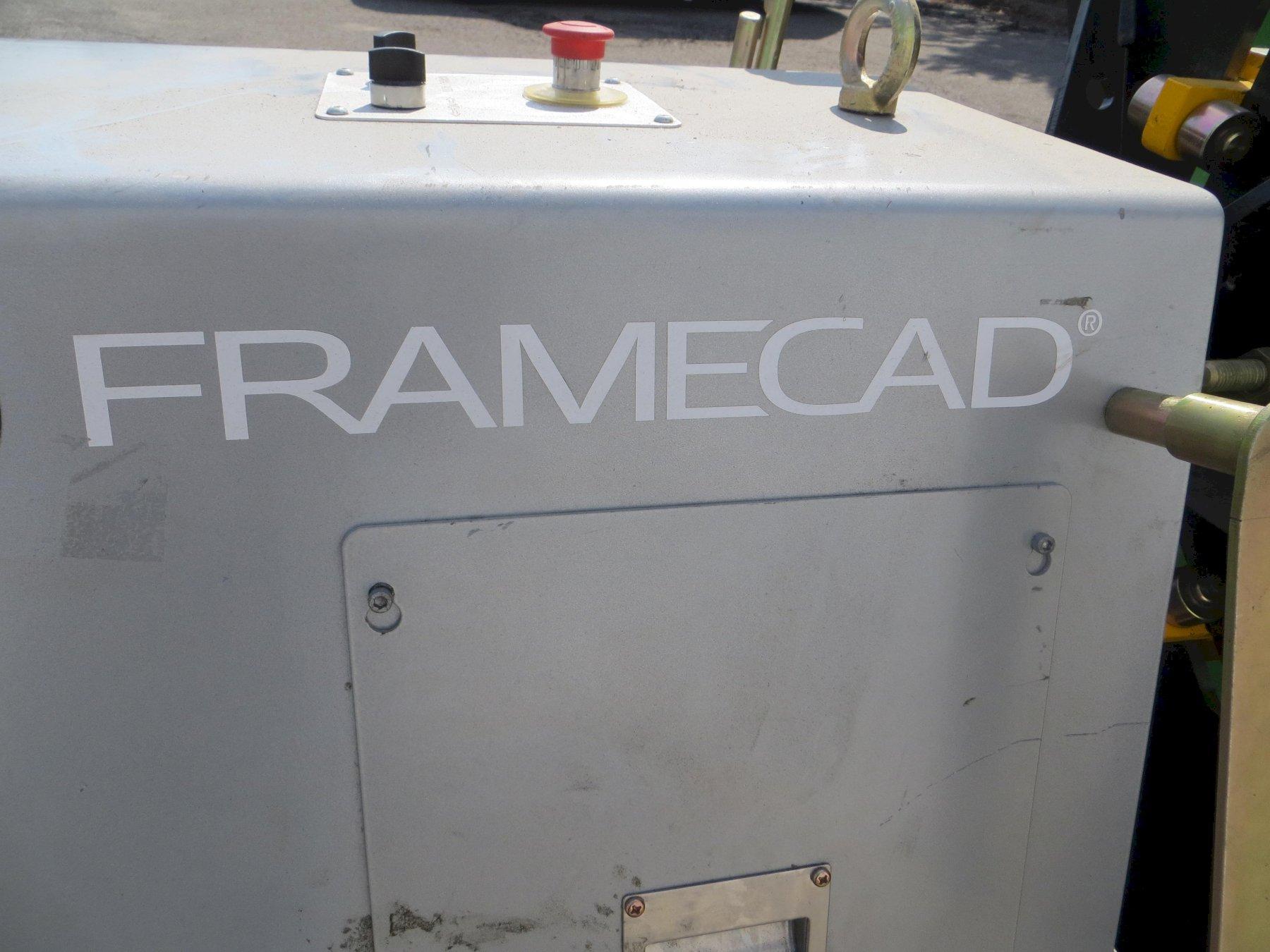

FRAMECAD Manufacturing System with Coil Reel
Model F325iT
New 2022/2023
The F325iT produces wall frames, trusses and joists for residential and light commercial buildings - quickly and economically.
Number of Profiles: 1 x C and 1 x U
Profile Width: 3.625"/ 89mm currently tooled
Profile Height: 41/38mm Boxable Section standard
Material Thickness Range: 24-18 Gauge (.55 - 1.2mm)
Rollforming Stations: 13 Auto Gauging

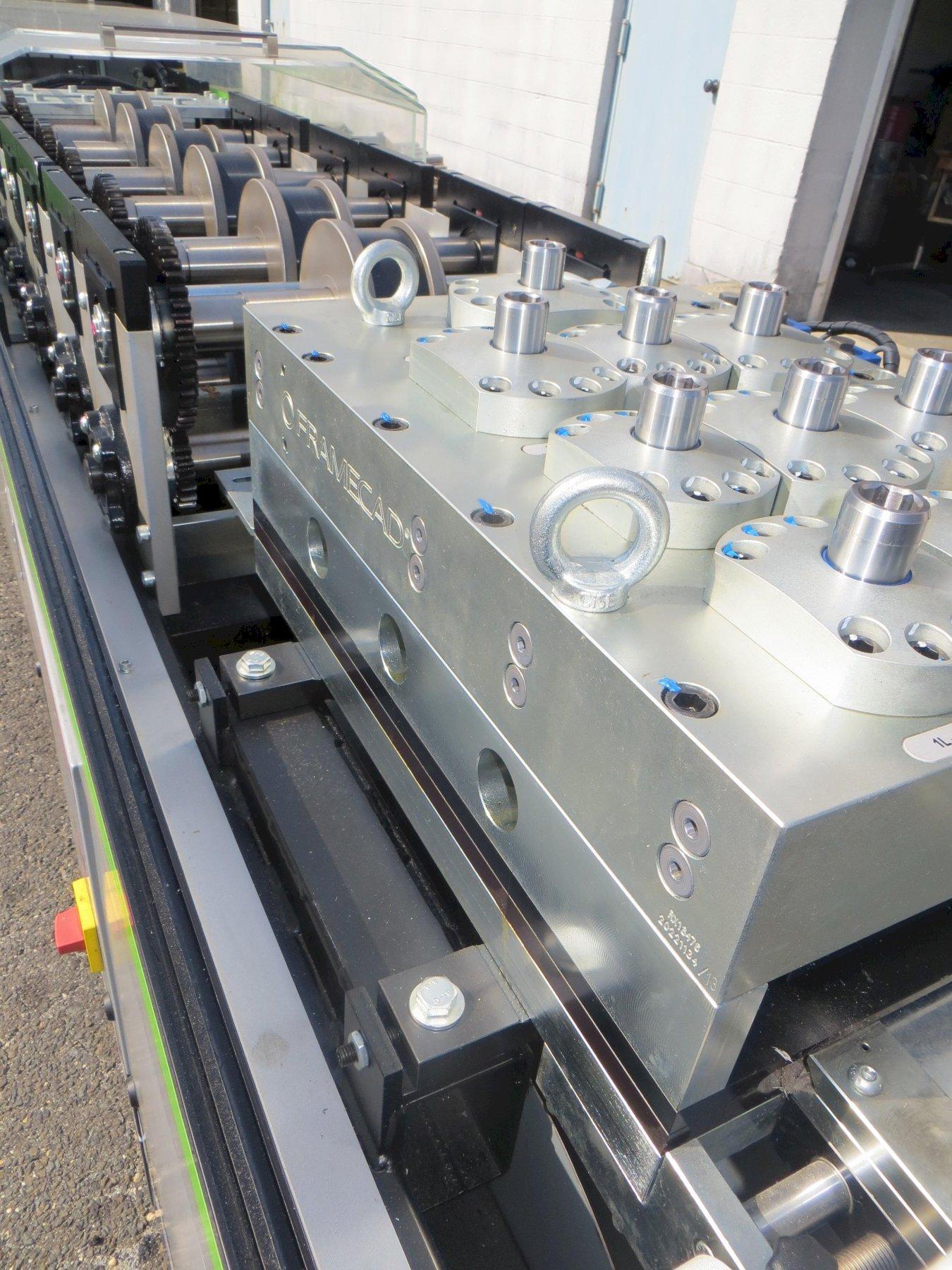

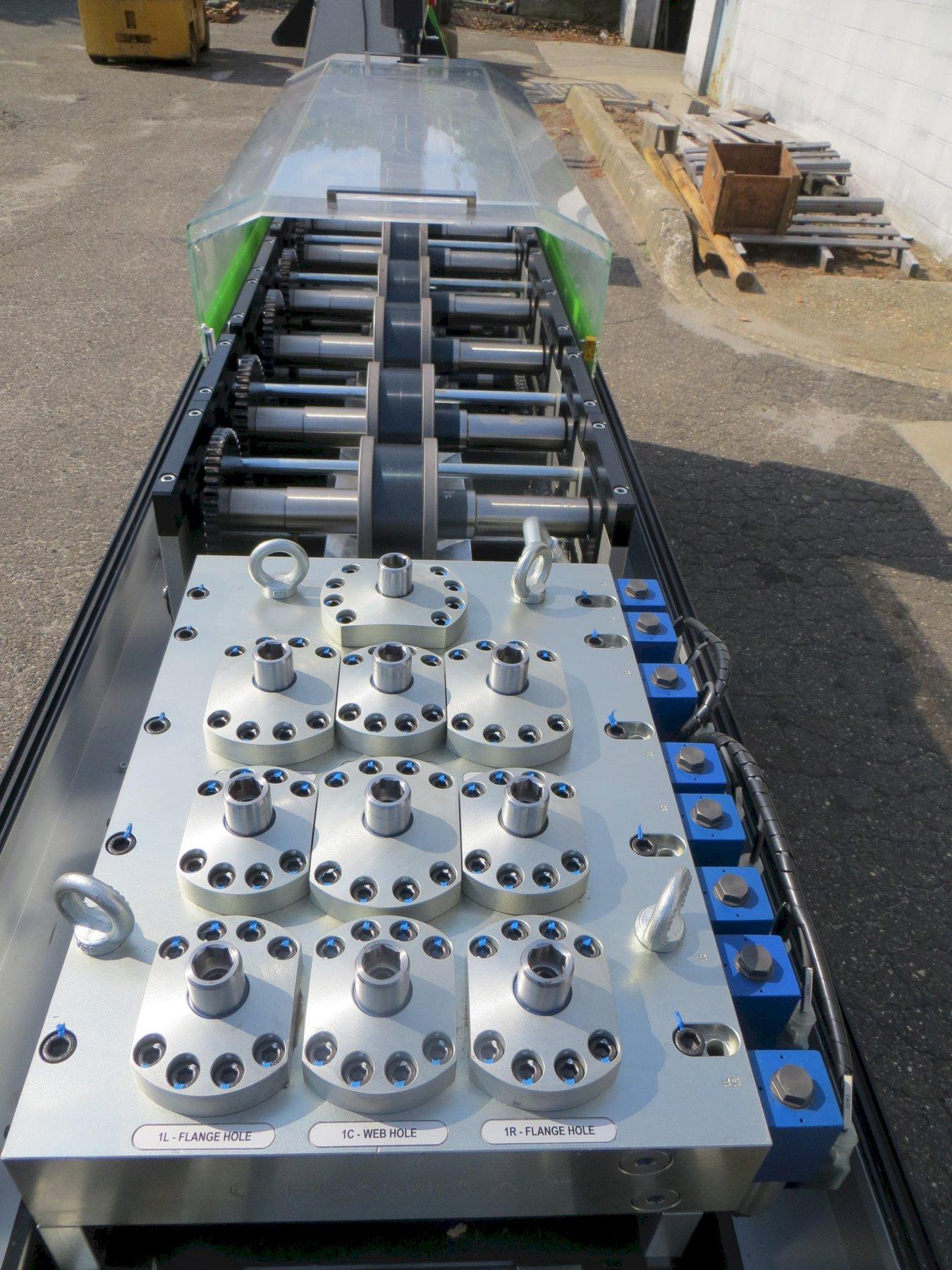

Tooling Stations: 12 Frame and Truss
Max Line Speed: 9,950 ft/hr (2,880m /hr)
Typical Production Speed (actual dependent on Framing design) Joists: 985 ft/hr (300 m/hr) and Walls: 2,300 ft/hr (700 m/hr)
Main Drive Motor: 10 HP
Approx Dims: 12 ft x 3 ft x 4 ft. (l x w x h)
Approx Weight: 4,050 lbs.

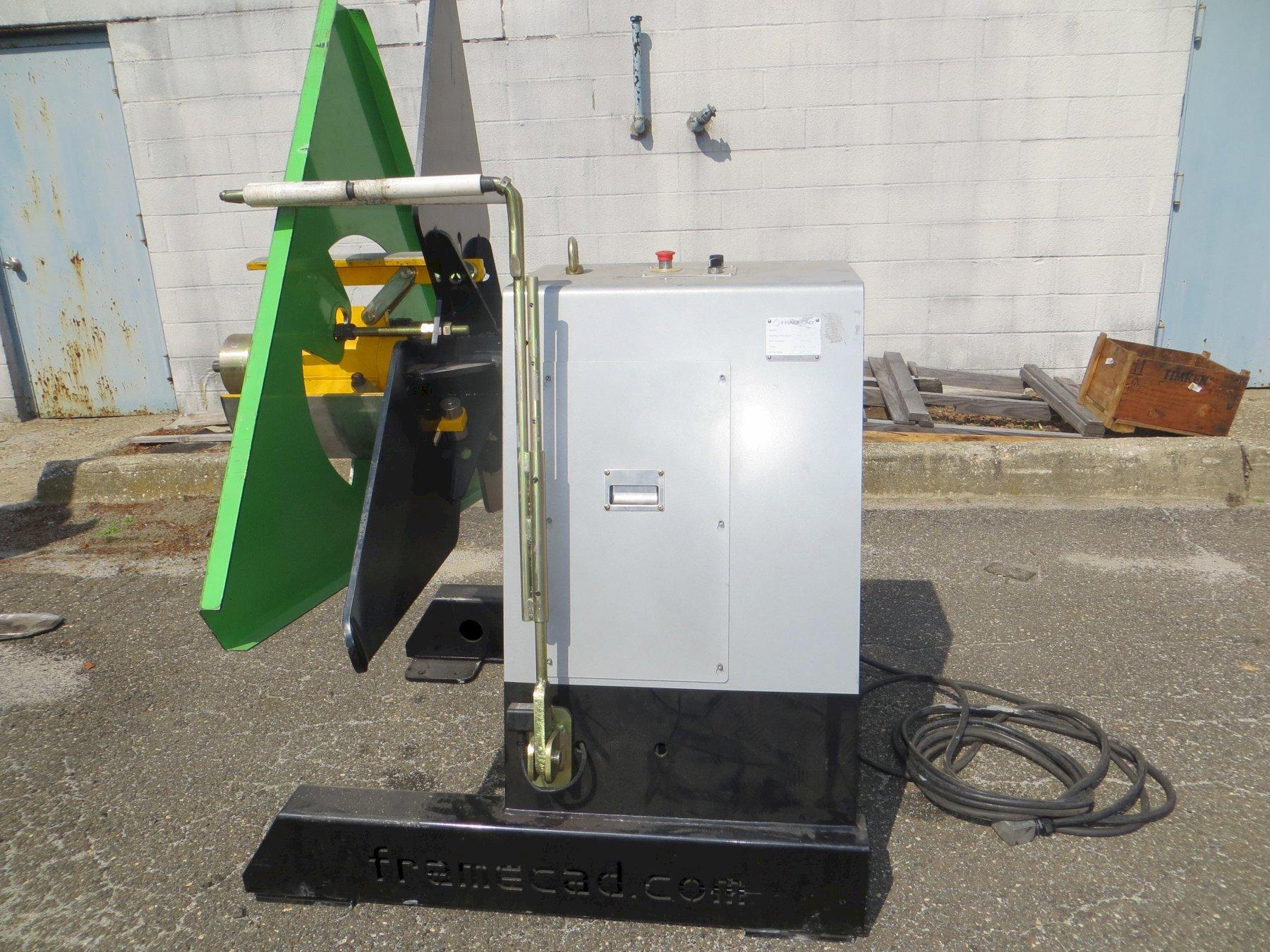

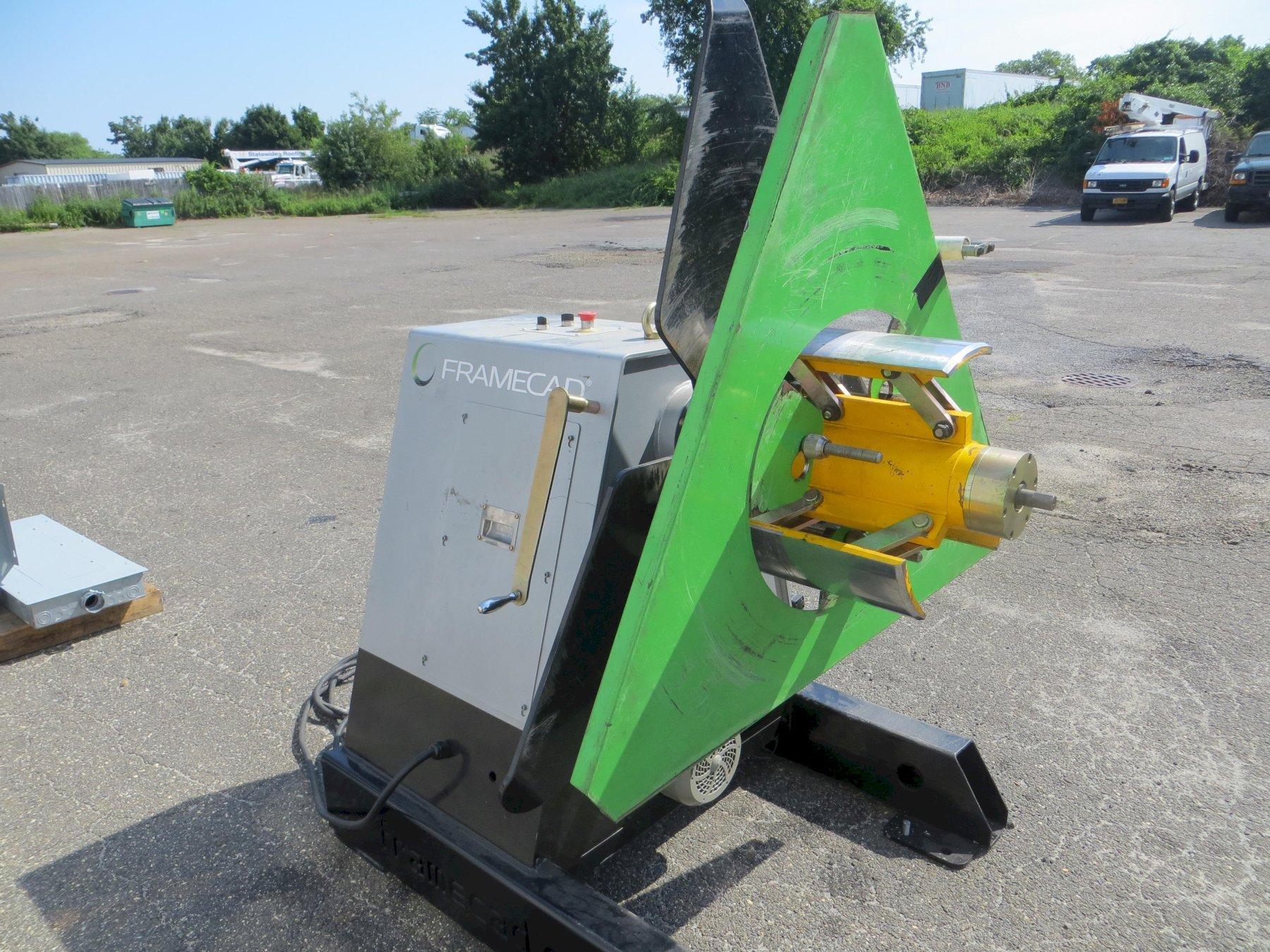

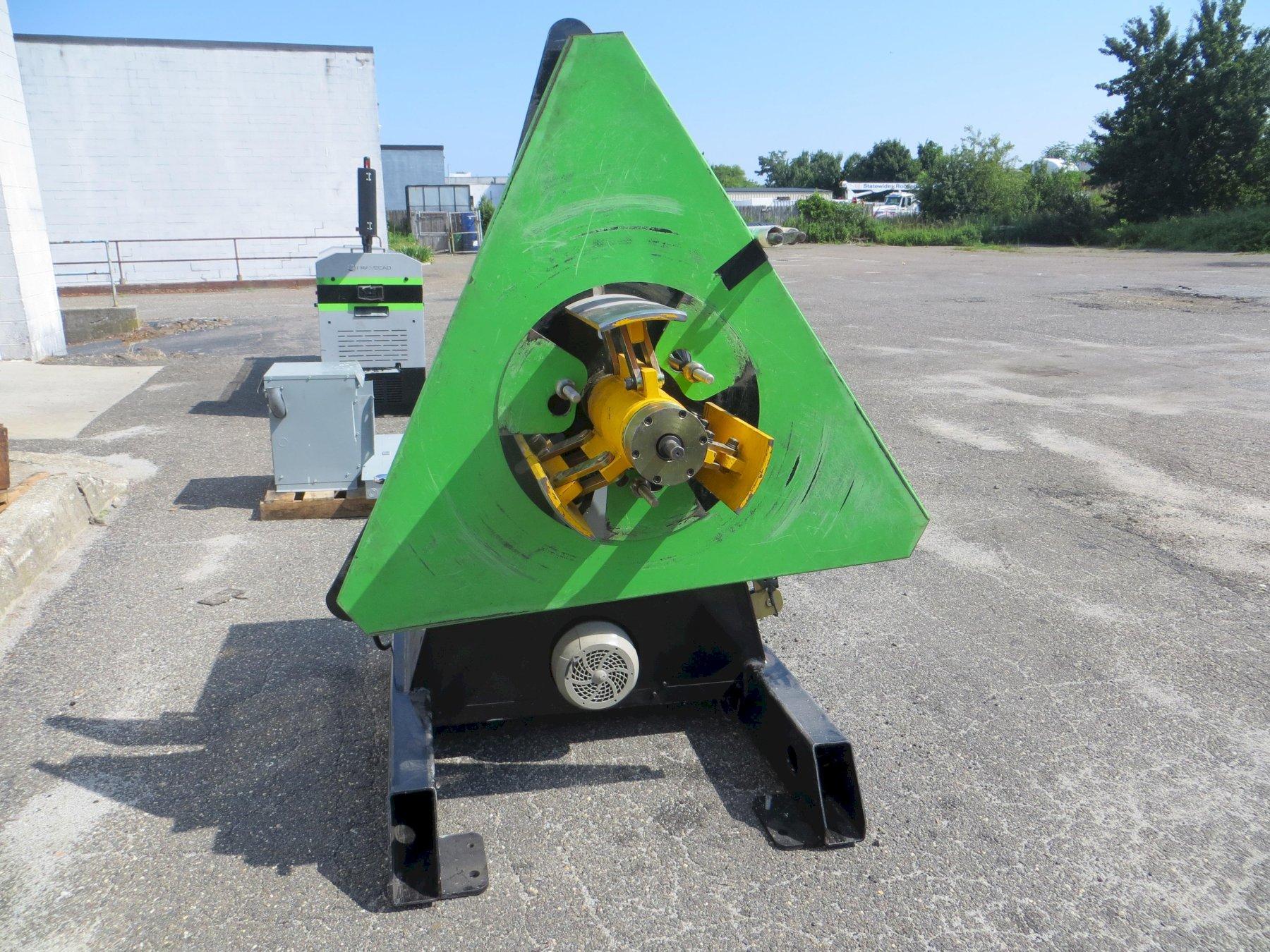

Coil Reel Capacity - 6,600 lbs. (3,000 kg)
FOB: Ronkonkoma, NY
